[en] Astra IP Overview

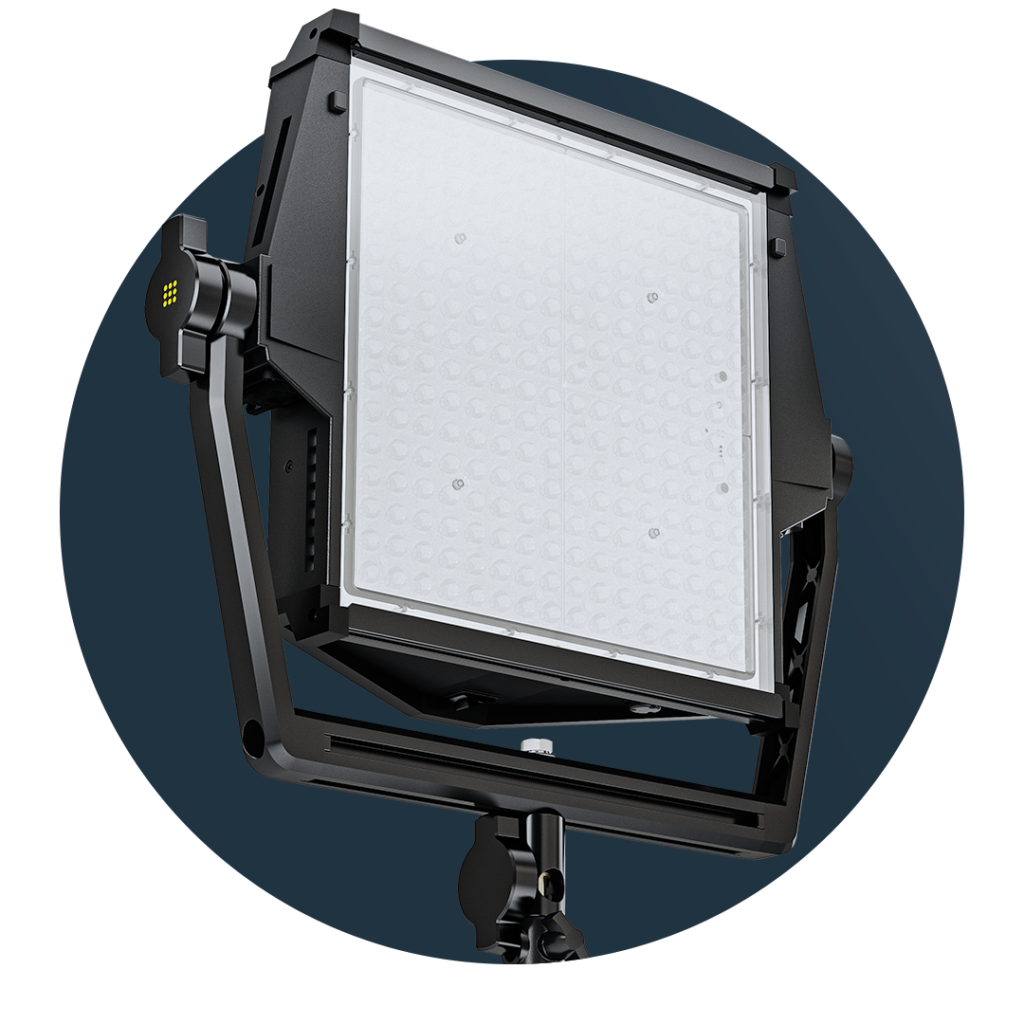

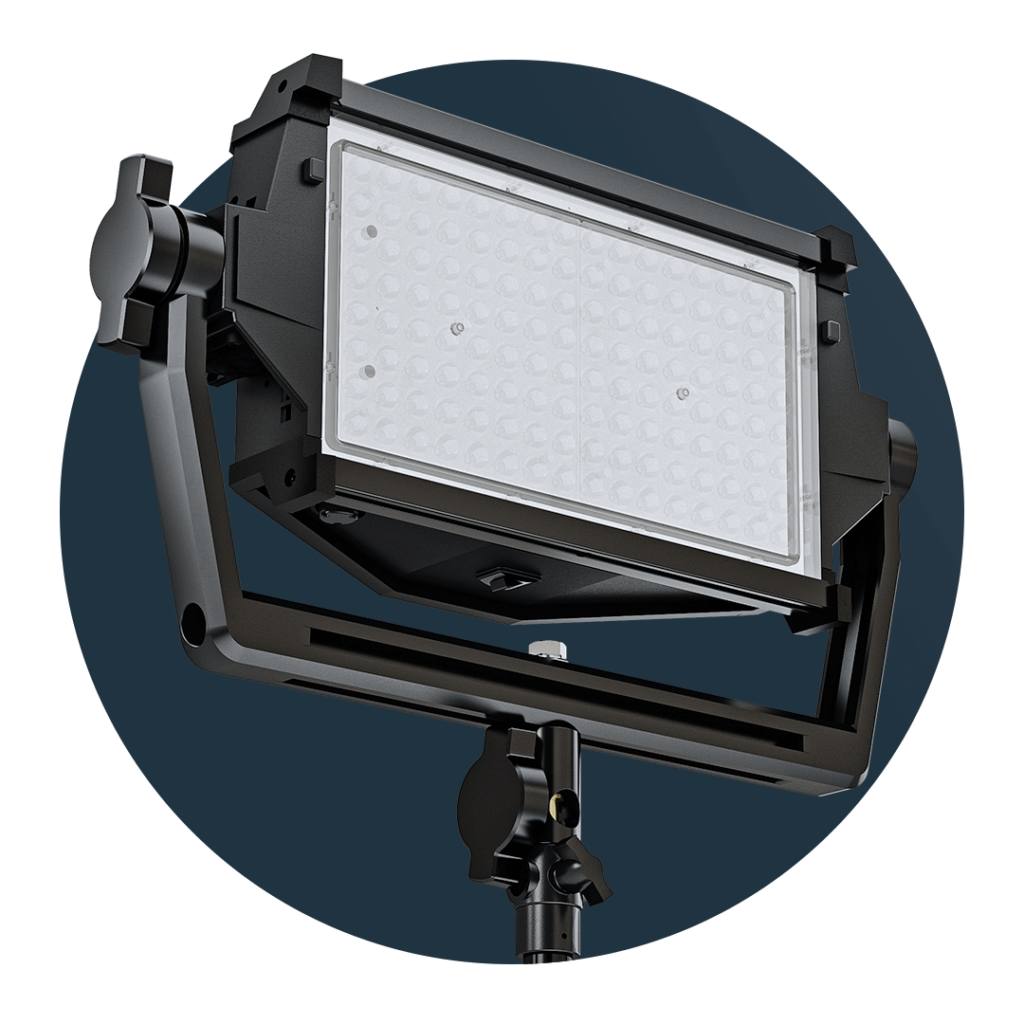

[en] The new Astra IP series is a Bi-Color LED lighting fixture that's IP65 rated against rain and dust. The fixture is built with a rugged design and an integrated AC power supply but also accepts optional Gold Mount, V-Mount and BP-U Battery plates for DC operation.

Astra-IP_Half_black-1.svg
Astra-IP_1x1_Black.svg
Astra-IP_2x1_black.svg

[en] 1500 lux output at 10ft/3m (5600K)

[en] 3000 lux output at 10ft/3m (5600K)

[en] 5500 lux output at 10ft/3m (5600K)

[en] Beam Angle: 30º

[en] Beam Angle: 30º

[en] Beam Angle: 30º

[en] BiColor 2700K - 6500K

[en] BiColor 2700K - 6500K

[en] BiColor 2700K - 6500K

[en] CRI/TLCI average 95

[en] CRI/TLCI average 95

[en] CRI/TLCI average 95

[en] Max Power: 63 Watts

[en] Max Power: 125 Watts

[en] Max Power: 250 Watts

[en] Weight: 6.2lbs / 2.8kg

[en] Weight: 9.7lbs / 4.4kg

[en] Weight: 17.2lbs / 7.8kg

[en] For full details about the HALF See HERE

[en] For full details about the 1x1 See HERE

[en] For full details about the 2x1 See HERE

[en] The Astra IP has native Bluetooth and WiFi connectivity along with manual control for IP65-rated operation when used for ENG production or other outside uses that need a low-weight, rain-resistant fixture that covers a CCT range of 2700K - 6500K. The new Astra IP comes in 3 models as noted above.

[en] Native Input Protocols: Built into the Astra IP series are native Bluetooth and Wi-Fi which allows control from apps such as StageLights, Luminair or Blackout.

[en] Comms Expansion: Comms Modules plug into the Comms Port for added control options. There are two versions of Comms Modules that provide additional input protocols.

[en] The DMX Comms Module adds 5-Pin XLR In/Out ports plus RJ45 In/Out ports.

[en] The DMX Comms Plus provides a host of other protocols in addition to wired DMX. This includes Ethernet (sACN & ArtNet), plus Lumenradio's Wireless DMX and BLE.

[en] Discover everything there is to know about the Astra IP series at the Litepanels website: litepanels.com/en/products/astra-ip/
