Technical Specification

LIGHT SOURCE

Array LEDs

MAX POWER

200W

CORRELATED COLOR TEMPERATURE

Turnable from 70ooK to 6500K

BEAM ANGLE

14° - 74°

LENS DIAMETER

250mm

POWER SUPPLY

90 – 260 Vac, 50/60 Hz, autosensing

POWER FACTOR (cosφ)

0,97

WEATHERPROOF RATING

IP20

OPERATIONAL TEMPERATURE (Ta)

0° – 35°

DIMMING

Electronic 16 bit, fully 0 – 100%

CONTROL

Internal temperature sensor, LCD graphic display with switch off function, silent fan, 3 presetting fan speed.

CONNECTIONS

DMX In and Through 5-Pin XLR; USB port for firmware and software upgrade and diagnostic

FEATURES

Internal temperature sensor, LCD graphic display with switch off function, silent fan, 3 presetting fan speed.

MOUNTING

Manual and Pole Operated stirrup.

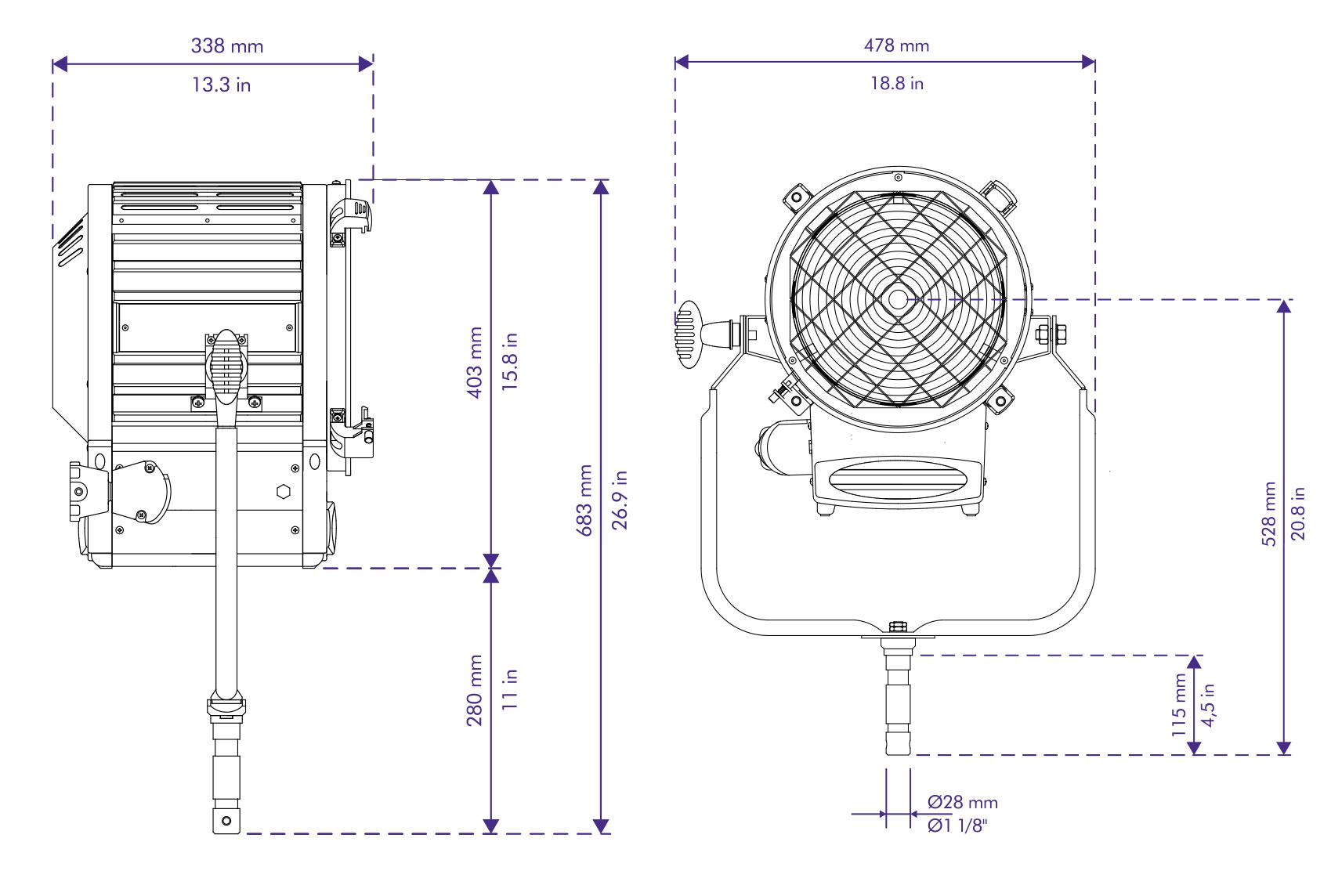

Dimensions
