Light Configuration & Settings

Menu Navigation

Navigation of the menu system is accomplished with the MENU Encoder just below the full color 2" x 1.5" LCD display.

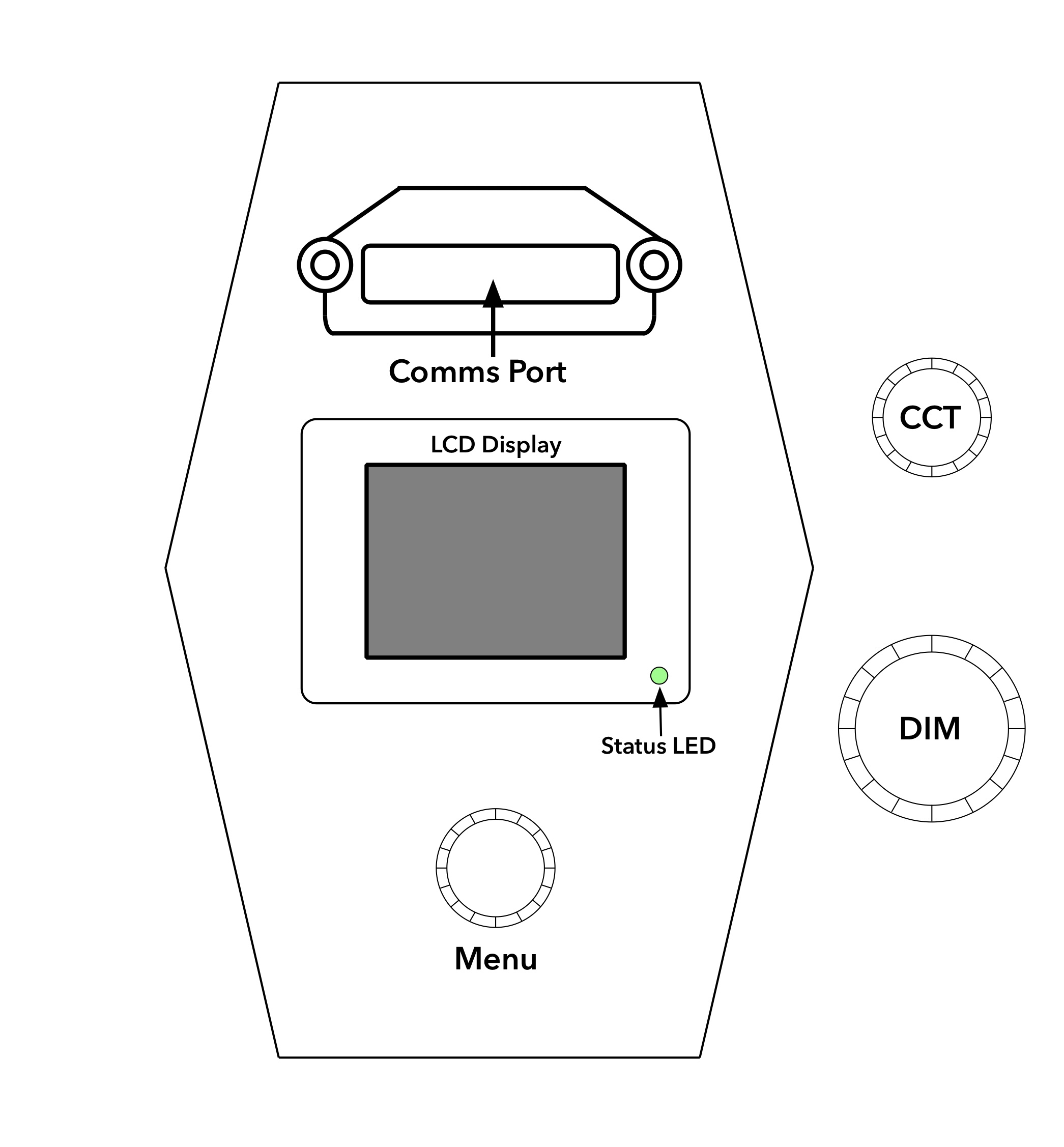

Back panel outline of Astra IP

The Menu Encoder is a rotary dial that is Turn-to-Select and Press-to-Enter. This encoder is referred to as MENU for navigation purposes.

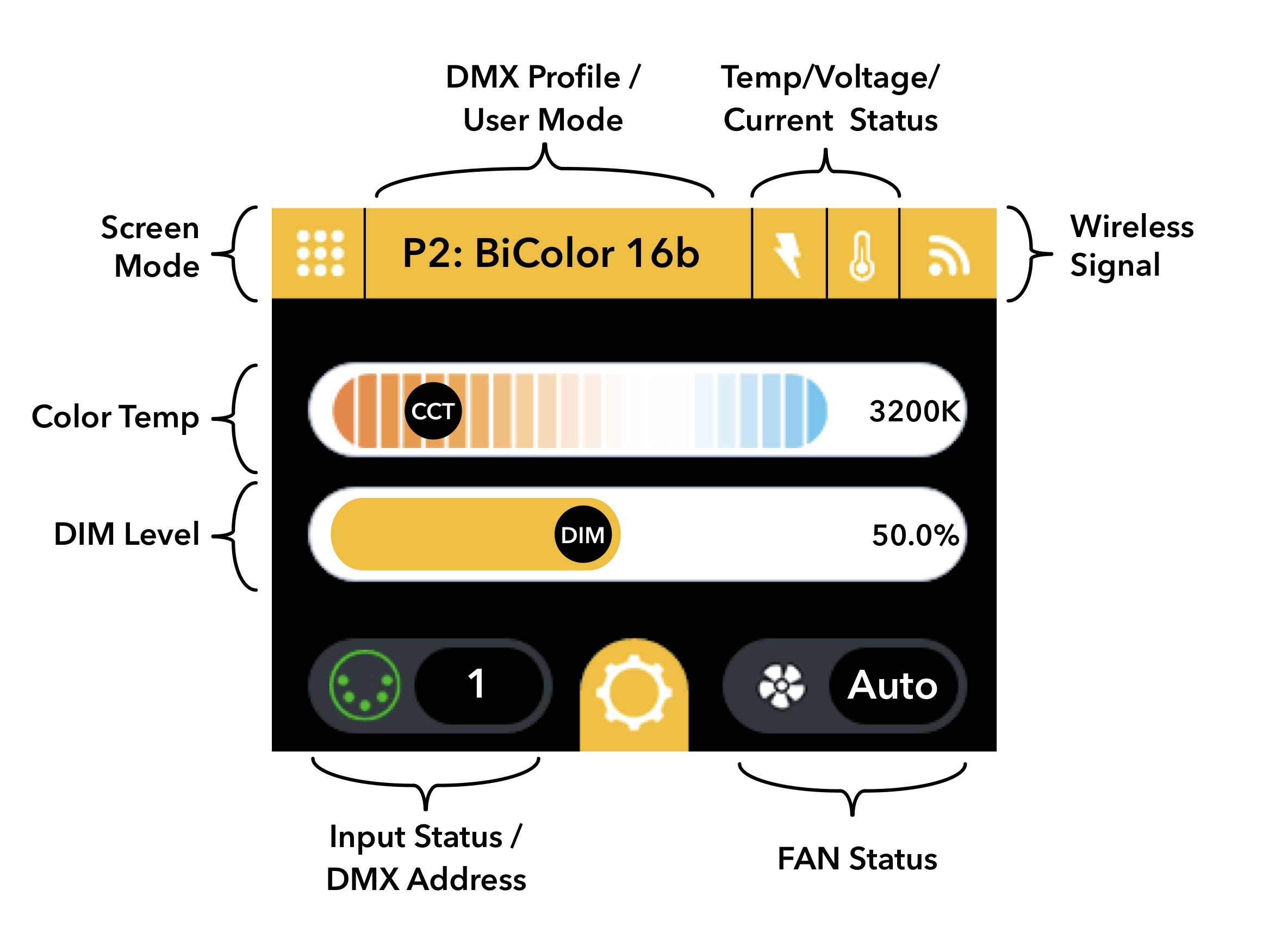

The Main Display shows DIM and CCT along with connection and DMX profile information


From the main display, press the MENU to open the system settings.

Turn the MENU encoder to scroll to your desired selection, then Press MENU to enter the selection.

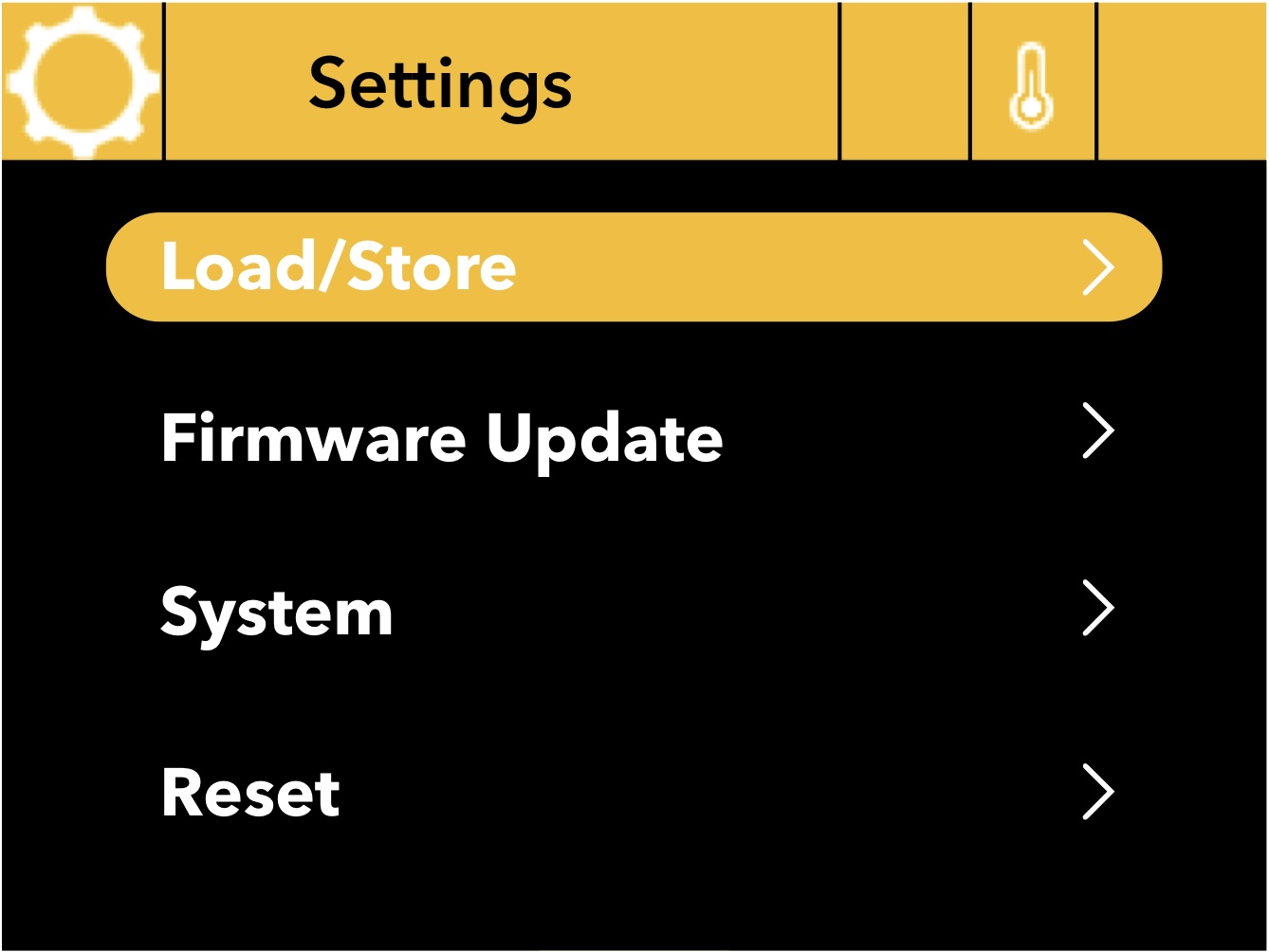

Turn the Menu Encoder to scroll through all the Menu Pages

At the bottom of any Menu page there is a BACK option to return to the previous menu or to the Main Display.

Once the fixture is configured as desired, use the Load/Store menu to save the fixture settings to a USB thumb drive for later recall.

Menu System

Manual Mode

  • BiColor (default Mode)

Comms Select

  • Bluetooth

  • WiFi

  • starCTRL

  • Wired DMX (DMX Comms module required)

  • Ethernet (DMX Comms Plus module required)

  • CRMX (DMX Comms Plus module required)

  • Wired Lead/Follow (DMX Comms module required)

  • For information about input protocols available through the Comms Modules. See Control OptionsControl Options

DMX Settings

  • DMX Profiles (8bit/16bit)

  • DMX Address (1-512)

  • DMX Termination (enable/disable)

  • DMX HOLD options (data loss behaviors)

Fixture Settings

  • Display Settings (Rotate, Backlite DIM)

  • Fan Settings (Auto, High, Delayed, Off or DMX Controlled)

Load/Store [Configuration to/from USB-C]

Firmware Update To update the fixture's software

System Menus

  • System Info (view Firmware versions and Network information about WiFi and Ethernet settings)

  • System Monitor (view temperatures ºC & power usage)

  • System Faults (displays information about possible system errors and faults... i.e. Temperature, Voltage, Fan warnings, etc.)

  • System Tests (Run a variety of self-tests on the fixture)

Reset (Factory Defaults)

TIP: You can return to the Main Display from anywhere in the Menu system. Simply PRESS & HOLD the MENU encoder for 3 seconds to be returned to the Main Display.
